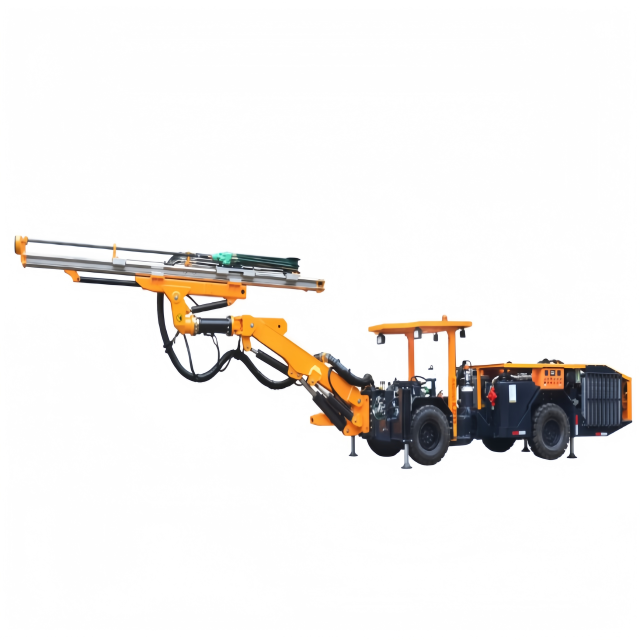

HAM-45B full-hydraulic Drill Truck for Mines

The HAM-45B full-hydraulic jumbo is capable of drilling vertical, inclined, and horizontal blast holes. It is specially designed for low-profile tunnels, able to pass through sections of 2.5m × 1.5m and suitable for tunneling operations in cross-sections ranging from 3.5m × 1.8m to 5m × 4.8m.
Its robust and reliable universal boom provides optimal coverage of the tunnel cross-section. The 360° rotation and automatic leveling of the feed beam allow for fast and convenient hole positioning.
The boom can also be used for lateral scaling and rock bolting operations.
The layout of the jumbo ensures excellent visibility for the operator.
Its well-balanced and powerful four-wheel-drive articulated chassis ensures agile, fast, and safe movement in narrow tunnels.
The high-frequency rock drill, equipped with a stepped piston, optimizes shock wave transmission efficiency, increases drilling speed, reduces tool wear, and improves equipment reliability.
A spacious operator cabin and a range of automated functions help the operator stay focused on safe, fast, and accurate drilling.
All maintenance and service points are well protected while remaining easy to access for maintenance.
