Dredge Pump Selection Guide:
1. Determine operational requirements: Assess the actual working conditions to determine the required head, flow rate, and conveying distance.
2. Review excavator specifications: Understand the hydraulic system parameters of the excavator, such as displacement and pressure.
3. Select a suitable hydraulic motor based on the above parameters.
4. Calculate actual hydraulic output power of the excavator's system to select a pump that matches the working conditions. This hydraulic-driven pump is compatible with various excavator models, including 120, 150, 220, 240, and 300 series, covering small, medium, and large excavators.

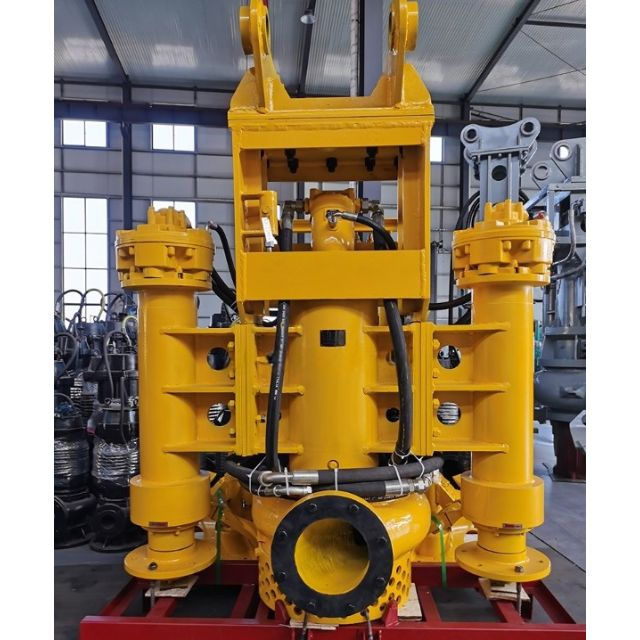

Product Advantages:
1. Powerful performance:
Driven by the hydraulic system, the pump delivers strong power. With the pump body positioned close to the sediment, it can easily extract higher-concentration slurry.
2. Advanced design – Dual agitation function:
A stirring impeller located at the bottom of the main pump agitates and draws in sediment and impurities within a 1.5 m² area around the inlet.
On both sides of the pump, hydraulic cutters provide low-speed, high-torque agitation to break up compacted or hardened deposits, turning them into slurry for easy extraction.
3. High wear resistance:
All wear parts are made of high-chromium alloy, offering excellent abrasion resistance and reducing the frequency of part replacements.
4. Effective anti-clogging:
Capable of handling high-concentration materials with strong throughput, it can pump solid particles up to 100mm in diameter. The rotating agitators help dislodge large objects and prevent the filter from clogging.
Dredge Pump Selection Guide:
1. Determine operational requirements: Assess the actual working conditions to determine the required head, flow rate, and conveying distance.
2. Review excavator specifications: Understand the hydraulic system parameters of the excavator, such as displacement and pressure.
3. Select a suitable hydraulic motor based on the above parameters.
4. Calculate actual hydraulic output power of the excavator's system to select a pump that matches the working conditions. This hydraulic-driven pump is compatible with various excavator models, including 120, 150, 220, 240, and 300 series, covering small, medium, and large excavators.
Product Advantages:
1. Powerful performance:
Driven by the hydraulic system, the pump delivers strong power. With the pump body positioned close to the sediment, it can easily extract higher-concentration slurry.
2. Advanced design – Dual agitation function:
A stirring impeller located at the bottom of the main pump agitates and draws in sediment and impurities within a 1.5 m² area around the inlet.
On both sides of the pump, hydraulic cutters provide low-speed, high-torque agitation to break up compacted or hardened deposits, turning them into slurry for easy extraction.
3. High wear resistance:
All wear parts are made of high-chromium alloy, offering excellent abrasion resistance and reducing the frequency of part replacements.
4. Effective anti-clogging:
Capable of handling high-concentration materials with strong throughput, it can pump solid particles up to 100mm in diameter. The rotating agitators help dislodge large objects and prevent the filter from clogging.
