In underground operations, production bottlenecks are heavily dictated by the efficiency of the material handling fleet. Misunderstanding the precise operational thresholds between loading equipment and haulage equipment leads to excessive cycle times, accelerated machine wear, and inflated ventilation demands. Optimizing a fleet requires a strict technical evaluation of when to deploy Load-Haul-Dump (LHD) loaders versus dedicated underground trucks. This guide breaks down the functional differences, performance limitations, and lifecycle maintenance factors to inform strategic procurement and fleet balancing for your Mining Equipment. We will examine pass-matching ratios, drift clearance requirements, and the mechanical realities of operating heavy machinery in abrasive, confined environments.
Distinct Operational Roles: LHD loaders (often referred to as scoops) are engineered for mucking, initial loading, and short-distance tramming, whereas underground mining trucks are optimized strictly for high-capacity, long-distance haulage.
The Distance Threshold: Relying on loaders for transport beyond 300–500 meters drastically reduces efficiency and increases tire wear; this is the critical transition point where trucks become necessary.
Infrastructure Constraints: Vehicle selection must align with drift dimensions, turning radii, and ramp gradients, as underground trucks require specific spatial clearances compared to low-profile loaders.
Maintenance and Uptime: Fleet availability hinges on predictable maintenance schedules and rapid access to critical components, such as Sandvik LH306E Spare Parts, to mitigate the high cost of unplanned downtime.
Establishing baseline success criteria requires understanding the exact engineering purpose and terminology of each vehicle class. Misallocation of capital often occurs when operators blur the lines between loading and hauling functions. You must define the exact role each machine will play before integrating it into your daily production cycle. A 14-tonne loader performs entirely different mechanical work than a 40-tonne haul truck, and treating them as interchangeable assets destroys fleet availability.

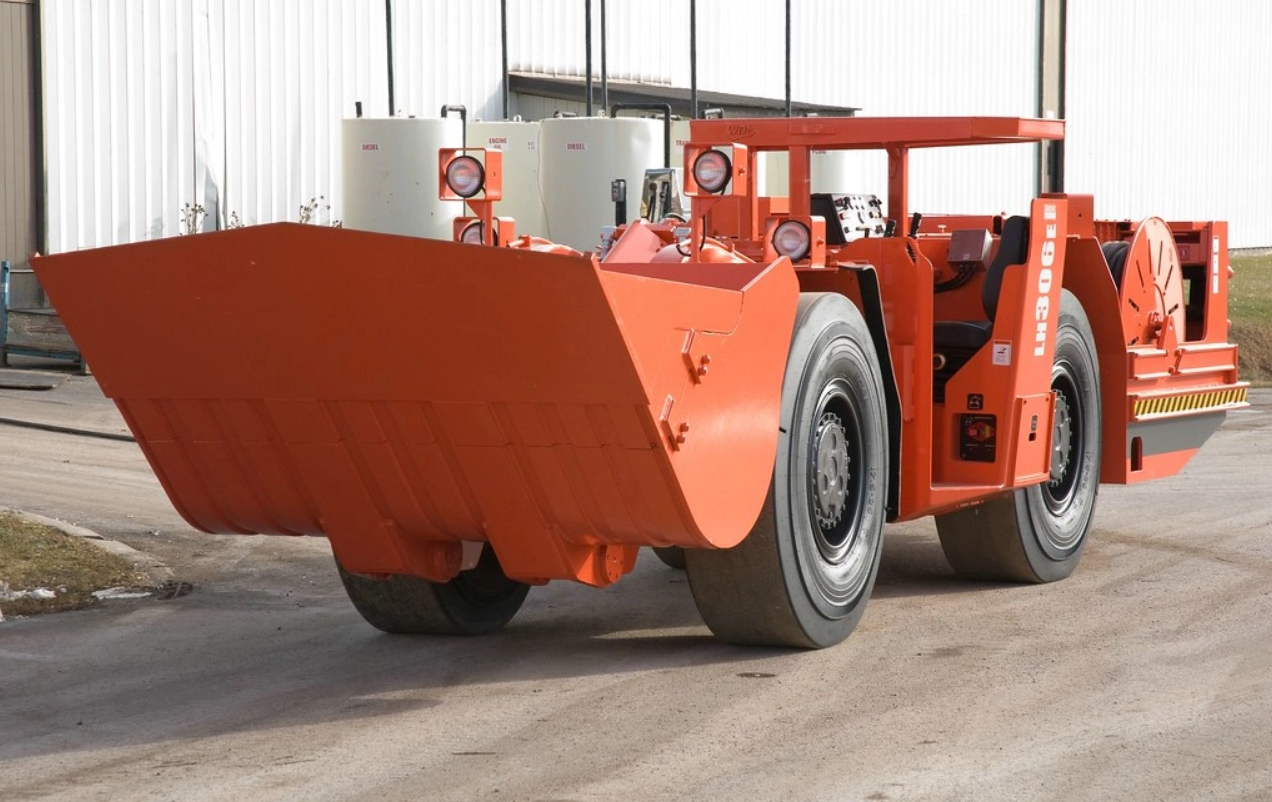

Commonly referred to as scoops or wheeled loaders, LHDs feature a low-profile design, articulated steering, and a front-mounted bucket. They are engineered to operate in confined stopes and narrow drawpoints. The primary mechanical action of an LHD is crowding. The machine pushes directly into a pile of blasted rock, utilizing massive hydraulic breakout force to fill the bucket efficiently. Operators rely on the boom and tilt cylinders to tear material from the muckpile.
Their primary applications include mucking blasted ore, loading haul trucks, and executing short-distance tramming to ore passes or underground crushers. However, LHDs have strict performance limitations. They become highly inefficient for long hauls due to lower top speeds and smaller payload capacities relative to their gross vehicle weight. Pushing an LHD over long distances causes severe tire degradation. The L5S slick tires heat up rapidly during extended trams, leading to ply separation and catastrophic blowouts.
LHDs also suffer from hydraulic heat buildup when trammed over long distances. The torque converter and transmission are geared for high tractive effort at low speeds, not sustained high-speed travel. When you force a loader to tram a kilometer up a ramp, you are actively destroying the drivetrain.
Underground trucks feature a narrow chassis, a high payload-to-weight ratio, and articulated or rigid frames designed specifically for steep ramp haulage. Unlike massive, open-pit surface haul trucks, an Underground Mining Vehicle built for haulage features an ultra-low physical footprint. They include specialized exhaust scrubbers or catalytic converters for strict emissions control and often feature bi-directional cabin configurations to eliminate the need for wide turning spaces.
These trucks transport bulk material over long distances, typically moving ore from loading bays to the surface or a main shaft. Their main limitation is that they are entirely incapable of self-loading. They rely completely on LHDs, scoops, or chute systems for material intake. Furthermore, they require wider turning radii and well-maintained haul roads to operate effectively. A truck hitting a deep pothole while fully loaded will suffer severe suspension cylinder damage and frame stress.
Trucks are geared for sustained ramp travel. Their transmissions feature lock-up clutches that provide direct mechanical drive, reducing heat generation and improving fuel efficiency on long uphill hauls. They also utilize hydraulic retarders to safely control downhill speeds without burning up the service brakes.
Feature | LHD Loader | Underground Mining Truck |
|---|---|---|
Primary Function | Mucking, loading, short tramming | Long-distance bulk haulage |
Self-Loading Capability | Yes (Hydraulic bucket) | No (Requires external loading) |
Optimal Distance | Under 300 - 500 meters | Over 500 meters to surface |
Drivetrain Optimization | High tractive effort, low speed | Direct drive, sustained grade speed |
Profile Design | Ultra-low profile, wide bucket | Narrow chassis, deep dump box |
Evaluating how these two classes of heavy machinery function as a paired system is mandatory. They are not isolated assets. The efficiency of your entire underground operation depends on how seamlessly the loader transfers material to the truck. A mismatch here destroys shift productivity.
Pass matching is the critical metric in this relationship. It defines how many LHD bucket passes are required to fill a specific truck model. The ideal ratio is typically three to four passes. This specific ratio optimizes cycle times, ensuring the truck is not waiting too long to be loaded, and the loader is not overworked filling a single bed. If a loader requires six passes to fill a truck, the truck spends too much time idling in the loading bay. If it takes only two passes, the loader is likely oversized for the drift or the truck is undersized for the production target.
Bottleneck analysis involves identifying whether the constraint lies in the mucking rate or the tramming cycle. If trucks are queuing at the loading bay, the loader is the bottleneck. You might need a larger bucket or a more aggressive mucking strategy. If the loader sits idle waiting for empty beds, the haulage fleet is the constraint. You either need more trucks on the circuit or faster ramp speeds.
The tramming crossover point is a fundamental operational metric. Analyzing the exact distance where loader tramming becomes inefficient dictates your fleet layout. This threshold typically sits around 300 to 500 meters. Beyond this point, relying on a combined LHD-to-Truck relay becomes necessary. You establish a remuck bay or a loading point where the LHD dumps material for the truck to pick up.
Ramp navigation also plays a major role. Gradients impact the drivetrain stress and speed of fully loaded trucks differently than loaders. Most underground ramps are driven at a 15% (1:7) gradient. Trucks are geared specifically to carry heavy payloads up these steep, sustained inclines. Loaders will suffer severe transmission and hydraulic heat buildup under the same sustained conditions. The torque converter in a loader slips continuously under heavy load, generating massive amounts of heat that the cooling system cannot shed during a long uphill tram.
Mapping machine specifications to specific mine design outcomes ensures you procure the right fleet. You must evaluate spatial limits, cycle times, and environmental impacts before finalizing any equipment deployment strategy. Buying a machine that does not fit your drift profile is a catastrophic error.
Drift dimensions dictate your equipment choices. You must match the physical footprint of the machine, including its width, height, and articulation angle, to your existing or planned drift profiles. A standard 4x4 meter drift requires specific equipment sizing compared to a 5x5 meter heading. Clearance requirements are equally important. You must factor in ventilation ducting, overhead piping, and safety clearances when sizing any machine. A truck box that hits the vent bag when dumping will cause immediate operational delays.
Operator ergonomics and cabin positioning also differ greatly. Loaders often require operators to sit sideways to facilitate constant forward and reverse tramming. This seating position reduces neck strain during bi-directional travel. Trucks, conversely, may utilize front-facing or rotating control consoles for long, sustained hauls. Visibility is a major safety factor. Blind spots on a loaded LHD are massive, requiring strict traffic management protocols at intersections.
Time-in-motion studies are essential for fleet optimization. You must calculate the total cycle time, which includes loading, traveling loaded, dumping, and traveling empty. Comparing these times across different fleet configurations highlights inefficiencies. You measure the exact seconds it takes for the LHD to crowd the muckpile, rack the bucket back, reverse, and dump into the truck.
Fuel burn and energy consumption also guide equipment selection. Moving material via a dedicated haul truck over long distances consumes significantly less energy per ton than attempting to tram that same material using an LHD loader. Trucks have better payload-to-gross-weight ratios. You spend more fuel moving rock and less fuel moving the dead weight of the machine itself.
Diesel Particulate Matter (DPM) outputs strictly dictate the required ventilation airflow in the mine. Engine tier ratings directly impact how much fresh air you must pump underground. A Tier 4 Final engine requires less ventilation air than a Tier 2 engine, but it introduces complex exhaust aftertreatment systems like DEF (Diesel Exhaust Fluid) and DPF (Diesel Particulate Filters) that require strict maintenance.
The shift to Battery Electric Vehicles (BEVs) is changing this dynamic. Evaluating BEV loaders and trucks involves looking at the reduction in ventilation infrastructure needs. Electric machines produce zero exhaust emissions and generate significantly less ambient heat. This allows mines to operate deeper without installing massive, power-hungry surface fans. However, BEVs require dedicated charging infrastructure and strict battery management protocols.
Moving beyond the initial deployment, you must evaluate the lifecycle maintenance requirements of heavy underground machinery. Consistent upkeep and strategic parts sourcing dictate your overall fleet availability. A machine waiting on parts is a machine not moving rock.
LHDs face unique vulnerabilities. They experience exceptionally high rates of tire wear from mucking in abrasive, wet conditions. Wheel spinning during the crowding phase shreds tire rubber against sharp rock. Their hydraulic systems endure constant stress from lifting, crowding, and dumping heavy rock. Cylinder seals, hydraulic hoses, and bucket lip shrouds require constant inspection and replacement.
Trucks face different fatigue points. Drivetrain fatigue is common from continuous uphill hauling under maximum payload. U-joints, drivelines, and differentials take a massive beating. Suspension and frame wear also accelerate rapidly if the trucks operate on uneven or poorly maintained haul roads. A truck bouncing over rocks will eventually crack its frame or blow a suspension strut.
Your inventory strategy directly impacts machine uptime. Keeping critical spares on hand prevents minor breakdowns from halting production. Model-specific maintenance requires securing reliable supply chains for high-wear items. For example, maintaining a specific loader fleet requires rapid access to Sandvik LH306E Spare Parts to guarantee mechanical availability. Relying solely on just-in-time delivery for specialized underground components introduces severe operational risk. If a hydraulic pump fails and the replacement is three weeks away, that loader is dead parked.
You must stock consumables locally. Filters, belts, hoses, bucket teeth, and common sensors should be in the underground shop. Major components like transmissions and torque converters can be managed through exchange programs, but you need a clear line of sight on lead times.
Deploying trucks introduces the hidden requirement of haul road upkeep. Trucks require graded, well-drained haul roads to operate efficiently. Failure to maintain these roads leads to catastrophic tire damage and severe suspension failures. You must deploy motor graders or dedicated road maintenance vehicles to keep the ramps smooth.
Loaders are more forgiving of rough terrain during short trams due to their massive tires and lower speeds, but trucks demand consistent road maintenance to achieve their designed travel speeds safely. Water management is critical. Potholes filled with water hide sharp rocks that will slice a truck tire instantly.
Addressing common pitfalls in fleet deployment ensures your operation hits its production targets without destroying the equipment. Poor planning leads to parked machines and missed tonnage.
Using loaders for long-distance tramming accelerates machine depreciation. It forces the machine to perform a task it was not primarily designed for, leading to premature transmission and tire failure. The heat generated in the axles and torque converter during a long tram will degrade the oil and destroy the internal clutches.
Mitigation requires conducting rigorous mine simulation modeling prior to deployment. You must establish strict tramming limits for your loaders and enforce them operationally. If a stope is 800 meters from the ore pass, you must establish a remuck bay and put a truck on that circuit. Do not let operators tram that distance with a loader.
Streamlining operator training is highly beneficial. Loaders and trucks share similar underground safety certifications, but they require distinct spatial awareness and steering skills. A good loader operator knows how to read a muckpile and fill the bucket without spinning the tires. A good truck operator knows how to manage momentum on a ramp and use the retarder to save the brakes.
Standardizing your fleet offers major safety and efficiency benefits. Using similar controls and cabin layouts across the fleet reduces operator error. Maintenance synergy is also achieved by reducing the complexity of the parts inventory, ideally aligning loader and truck engine manufacturers where possible. If all your machines use Cummins QSL9 engines, your mechanics only need to learn one engine platform.
An optimized underground operation does not simply choose between a loader and a truck. It calculates the precise ratio of LHDs to trucks based on mine geometry, haul distances, and daily production targets. To refine your fleet strategy, take the following actions:
Conduct a comprehensive time-in-motion study of your current material handling cycles to identify exact bottleneck locations at the drawpoints.
Audit your existing maintenance supply chains to ensure critical wear parts and hydraulic components are stocked locally in the underground shop.
Consult with equipment manufacturers to obtain payload-to-weight optimization data for your specific rock density and fragmentation profile.
Establish strict operational rules that limit LHD tramming distances to a maximum of 500 meters before transitioning to truck haulage.
A: The maximum efficient tramming distance for an LHD loader is typically between 300 and 500 meters. Pushing a loader beyond this distance drastically reduces cycle efficiency, increases fuel consumption, and accelerates tire and transmission wear due to excessive heat buildup.
A: Underground trucks feature a narrow, low-profile chassis designed to navigate tight drifts and steep ramps. They include specialized exhaust scrubbers for enclosed spaces and bi-directional cabins, whereas surface trucks are massive, high-capacity vehicles built for wide open-pit environments.
A: Yes, in very small-scale operations where the distance from the drawpoint to the ore pass or surface is strictly under 500 meters, an LHD can handle both loading and hauling. However, this becomes mechanically destructive for deeper, expansive mines.
A: Operators for both machines require standard underground safety and hazard recognition certifications. However, the practical driving skills differ significantly. Loaders require expertise in crowding and bucket manipulation, while trucks require advanced spatial awareness for long-distance ramp navigation.
A: For loaders, the most common failures involve hydraulic cylinder leaks, bucket lip wear, and severe tire degradation. For trucks, the primary failures are drivetrain fatigue from sustained uphill hauling and suspension damage caused by poorly maintained haul roads.
A: Diesel equipment emits particulate matter and heat, requiring massive volumes of fresh air pumped underground. If a mine has limited ventilation capacity, operators must choose lower-emission Tier 4 engines or transition to Battery Electric Vehicles to remain compliant with airflow regulations.
