​The definition of an underground dumper truck

Views: 0     Author: Site Editor     Publish Time: 2021-11-25      Origin: Site Inquire

An underground dumper truck is a special hopper that can turn over short-distance transport material vehicles. The body of the vehicle is fitted with a "bucket" shaped container that can be flipped over to facilitate unloading. It is suitable for short-distance transportation of bulk materials such as sand, earthwork, etc. It has strong power and usually has the function of a mechanical return bucket. The following is an introduction to underground dumper trucks.


Here is the content list:

The definition of an underground dumper truck

Instructions for the use of an underground dump truck

Adaptation environment of underground dump truck


The definition of an underground dumper truck

The underground dumper truck is composed of a hopper and a walking chassis. The hopper is installed in the front of the tire walking bottom frame, with the help of the gravity of the material in the hopper or the thrust of the hydraulic cylinder tipping discharge. According to different directions, unloading can be divided into forwarding tipping unloading, rotary unloading, side tipping unloading, high fulcrum unloading (the unloading height is certain), and lifting tipping unloading (the unloading height can be arbitrarily changed).

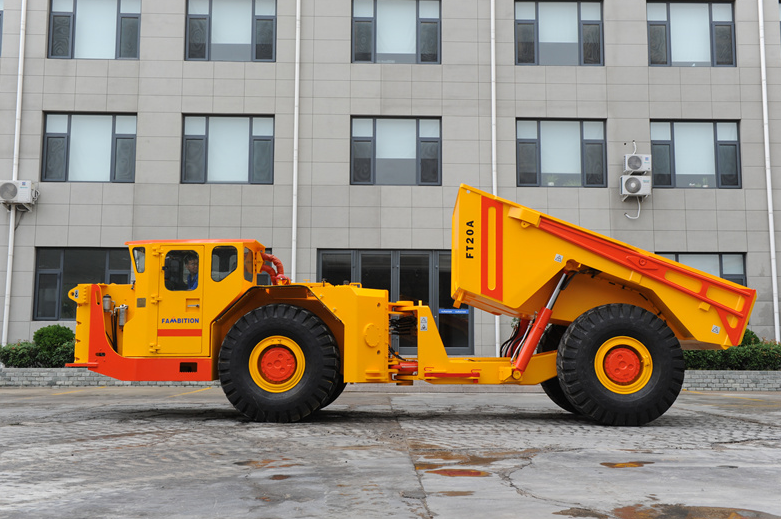

underground dumper truck


Instructions for the use of an underground dump truck

The underground dump truck has many advantages such as large horsepower, small footprint, small car noise, convenient and flexible operation, energy-saving, and convenient operation; the car can be equipped with different engines according to the different use environment and purposes and can be carried out according to customer needs Made to order. In civil engineering, underground dump trucks often work in conjunction with excavators, loaders, belt conveyors, and other engineering machinery to form a loading, transportation, and unloading production line to carry out the loading and unloading and transportation of earth, sand, and bulk materials.


Adaptation environment of underground dump truck

Underground dump trucks are mainly designed to adapt to roadways with a slope of 25° or less. They are mainly designed for narrow roadways and low-height mines. They are driven by axles or front and rear axles, and the front wheels are steered. The gearbox with auxiliary gear is selected, equipped ; the speed range of underground dump trucks is large, it can withstand large torque and large traction, and the speed is high to save time. Equipped with effective exhaust reduction treatment equipment, low exhaust emissions; specially manufactured ultra-narrow axles, the width of the vehicle is only 1.5 meters, and the narrowest can be designed to 1.35 meters.

Brake is the wet brake (optional air brake), which effectively guarantees the performance of use; adopts air-assisted clutch device, which is easy, effective and reliable; full hydraulic cylinder system steering device, easy and flexible operation; dual-cylinder dump device, stable and long life; The special leaf spring for underground mining trucks is durable and reliable; the standard engine has a front long head design, which guarantees the driver. The ultra-low driving system design can be selected for special working conditions, which can meet the normal use at a height of 1.5 meters.


If you want to know more about the underground dumper truck, you can visit our company's official website. Hambition mining focused on the production of high-quality underground dumper truck products, and constantly improve the performance and reliability of the product, to provide users with an economic, practical, high-quality underground dumper truck.
