Unplanned downtime in mining operations carries a severe financial impact. Catastrophic drivetrain failures often stem from under-specced components struggling against extreme operational demands. Standard commercial axles simply fail when subjected to the harsh realities of surface and underground mining. These environments feature varying gradients, massive payload extremes, and constant exposure to abrasive materials. Matching heavy-duty drive axles to specific mining conditions requires a rigorous, specification-driven approach. Operators must evaluate torque capacity, environmental sealing, and long-term serviceability. Selecting the right Transmission System Parts ensures your equipment remains operational, safe, and productive under the most punishing conditions. We must look beyond basic specifications to understand how these components handle continuous stress.
Load and Torque Alignment: The primary selection criteria must align the axle’s dynamic load rating and planetary reduction ratio with the vehicle’s maximum gross weight and operational gradient.
Environmental Resilience: In mining, wet multi-disc brakes and advanced ingress protection (IP) sealing are non-negotiable for preventing abrasive contamination.
Component Synergy: Drive axles must be evaluated as integrated transmission system parts, ensuring seamless compatibility with the existing gearbox, driveshaft, and hydraulic systems.
Proven Reliability: Standardizing on proven architectures, such as the Kessler D81 drive axle, reduces maintenance variables and ensures predictable lifecycle costs.
Mining environments subject equipment to relentless physical stressors. Vehicles face high rolling resistance from uneven, unpaved haul roads. They require continuous high-torque output to move massive payloads up steep inclines. Furthermore, the operating environment is saturated with abrasive dust, thick mud, and highly corrosive mine water. These elements aggressively attack seals, bearings, and exposed moving parts. When you operate a loader underground, the drivetrain absorbs massive shock loads every time the bucket hits the muck pile. The axles must withstand these impact forces without shearing internal splines or shattering differential gears.
Baseline success criteria for these components center on maximizing Mean Time Between Failures (MTBF). Operators must also focus on minimizing scheduled maintenance windows. Equipment needs to stay in the dirt, moving material, rather than sitting in the maintenance bay awaiting replacement parts. We measure success by how many thousands of hours an axle can operate before requiring a major overhaul. This requires robust internal components, oversized bearings, and heavy-duty cast housings that resist deflection under maximum payload.
In surface mining, haul trucks navigate long, steep grades that test the thermal limits of the entire drivetrain. The continuous torque demand generates significant heat within the differential and planetary hubs. Effective heat dissipation becomes a primary success factor. If the axle cannot shed heat faster than it generates it, the gear oil degrades rapidly. Degraded oil loses its film strength, leading to metal-on-metal contact and rapid component destruction. Therefore, evaluating the thermal capacity of the axle housing and the oil volume is a mandatory step in the selection process.
Incorrect axle selection triggers a chain reaction of cascading mechanical failures. An under-specced axle leads to premature differential wear. It causes snapped axle shafts under heavy load spikes. Inadequate braking configurations result in overheated braking systems, posing severe safety risks. When an axle fails on a haul ramp, it blocks traffic, halting production for the entire shift. The recovery process alone requires specialized heavy wreckers and exposes personnel to significant safety hazards.
The long-term financial impact of a failed axle extends far beyond the component itself. You must account for replacement hardware, intensive mechanical labor, and the massive revenue loss from halted production yields. Proper specification upfront prevents these expensive operational bottlenecks. We have seen operations lose hundreds of thousands of dollars in a single week due to a single mismatched drive axle. The labor hours required to drop a heavy mining axle, rebuild it, and reinstall it are substantial. You need specialized tooling, heavy lifting equipment, and highly trained technicians.
Furthermore, mismatched axles cause accelerated wear on other drivetrain components. If the axle ratio is incorrect, the transmission must shift more frequently, leading to premature clutch pack failure. The driveshafts experience higher torsional vibration, destroying universal joints and carrier bearings. Selecting the correct axle protects the entire kinematic chain. It ensures that torque transfers smoothly from the engine to the ground, maximizing tractive effort and minimizing mechanical stress.
Understanding load capacity is critical. Static load refers to the stationary weight bearing down on the axle. Dynamic load accounts for the weight bearing down under acceleration, heavy braking, and cornering on severely uneven terrain. Dynamic forces exponentially increase the stress on the axle housing and internal components. When a fully loaded haul truck hits a deep pothole at speed, the dynamic load on the front axle can spike to three times the static load. The axle housing must possess the structural rigidity to absorb this impact without bending or cracking.
Calculating required dynamic load ratings depends heavily on the specific mining vehicle type. Articulated dump trucks experience different torsional stresses compared to load haul dumpers (LHDs). Engineers must factor in the gross vehicle weight, payload distribution shifts, and operational shock factors when determining the necessary dynamic rating. We use complex load spectrum analysis to map the anticipated forces over a typical duty cycle. This analysis dictates the required thickness of the axle housing, the size of the wheel bearings, and the metallurgical composition of the axle shafts.
You cannot rely on generic commercial truck ratings for mining applications. A commercial axle rated for 40,000 pounds on a paved highway will fail rapidly under a 40,000-pound load on a rocky, uneven mine road. The continuous oscillation and articulation of mining equipment place severe bending moments on the axle tubes. We specify axles with reinforced trumpet housings and heavy-duty mounting pads to handle these extreme forces. The dynamic load rating must exceed the maximum anticipated operational stress by a significant safety margin.
Planetary hub reduction is mandatory in mining axles. This design multiplies torque directly at the wheel end. By doing so, it significantly reduces the torsional stress placed on the central differential and the main driveshaft. This localized torque multiplication allows the vehicle to move massive loads without shattering upstream drivetrain components. Instead of transmitting 100,000 lb-ft of torque through the entire axle shaft, the planetary gears handle the final multiplication. This allows for smaller, lighter differential components while delivering massive tractive effort at the tire contact patch.
Matching the axle ratio to the engine's torque curve is vital. The transmission's output must synchronize with the axle's reduction ratio to optimize tractive effort and maintain efficient engine RPMs during steep grade climbs. If the ratio is too fast, the vehicle will lack the gradeability to climb out of the pit. If the ratio is too slow, the top speed will suffer, reducing overall productivity. We analyze the vehicle's rimpull curve to select the optimal planetary and differential gear ratios.
The modular nature of planetary hubs offers significant maintenance advantages. Technicians can inspect and replace the sun gear, planet gears, and ring gear without removing the entire axle from the vehicle. This modularity reduces repair times and simplifies inventory management. We stock various planetary gear sets to quickly adjust the final drive ratio if the operational requirements change. This flexibility is a key advantage of utilizing heavy-duty planetary drive axles in mining fleets.
Every drive axle has a maximum allowable input torque limit. This limit must exceed the maximum output generated by the dropbox, torque converter, and other upstream Transmission System Parts. Exceeding this limit causes immediate internal catastrophic failure. The pinion gear will shear its teeth, or the input shaft will snap under the torsional load. We carefully calculate the maximum stall torque of the torque converter and ensure the axle's input rating exceeds this value.
Flange and yoke compatibility is equally important. Utilizing standardized interfaces, such as Mechanics or GWB series flanges, ensures proper alignment. Correct alignment prevents drivetrain wind-up, eliminates harmful vibrations, and stops universal joint shear under heavy acceleration. The mounting hardware must utilize high-strength, fine-thread bolts torqued to precise specifications. Loose flange bolts will quickly wallow out the mounting holes, destroying the input yoke and causing severe driveshaft vibration.
We also evaluate the operating angle of the Cardan shaft. Extreme articulation can push the universal joints beyond their maximum operating angle, causing binding and premature failure. The axle input flange must align properly with the transmission output flange to maintain equal joint angles. This alignment minimizes torsional vibration and extends the life of the entire driveline. Proper phasing of the driveshaft yokes is also critical to ensure smooth power transmission.
Dry disc brakes frequently fail in mining applications due to mud and rock ingress. Fully enclosed, liquid-cooled wet multi-disc brakes are the industry standard. They remain sealed from environmental contaminants and offer vastly superior longevity. The friction plates operate in a continuous oil bath, which cools the braking surfaces and flushes away wear particles. This design provides consistent, fade-free braking performance even under the most severe operating conditions.
Integrated spring-applied, hydraulic-release (SAHR) mechanisms provide fail-safe braking. If hydraulic pressure drops, the springs automatically engage the brakes, preventing runaway vehicles. Thermal management is also critical. Continuous downhill haulage generates immense heat. External cooling loops are often necessary to circulate and cool the brake oil, preventing fluid degradation and dangerous brake fade. We monitor brake cooling oil temperatures closely to ensure they remain within safe operating limits.
The brake cooling system requires dedicated hydraulic pumps, heat exchangers, and filtration circuits. The oil must flow at a sufficient rate to carry away the heat generated during long descents. If the cooling flow is inadequate, the brake oil will boil, leading to complete loss of braking power. We specify high-capacity cooling systems for vehicles operating on steep, extended grades. Regular oil sampling is necessary to monitor the condition of the brake fluid and detect early signs of friction plate wear.
Traction is a constant challenge in high-slip mining environments. Open differentials send power to the wheel with the least resistance, which is useless in deep mud. Limited-slip differentials provide better traction by transferring some torque to the gripping wheel. However, limited-slip clutches can wear out quickly in continuous high-slip conditions. They require specialized friction modifiers in the gear oil to operate smoothly without chattering.
Fully locking differentials offer the ultimate solution for severe conditions. They mechanically lock both wheels together, forcing them to turn at the same speed. This configuration guarantees maximum tractive effort when navigating treacherous, low-friction underground declines or muddy surface pits. Operators engage the differential lock only when necessary to prevent drivetrain wind-up on hard surfaces. We train operators extensively on the proper use of differential locks to prevent mechanical damage.
Some advanced axles utilize proportional hydraulic locking differentials. These systems automatically adjust the locking force based on wheel slip sensors and steering angle inputs. This provides optimal traction without requiring manual operator intervention. While more complex, these systems reduce tire wear and minimize stress on the axle shafts. We evaluate the specific traction requirements of the mine site to select the most appropriate differential configuration.
Rigid axles typically mount at the rear of the vehicle. They feature a solid, heavy-duty housing designed to bear the maximum payload weight. Steerable drive axles mount at the front. They incorporate steering knuckles and constant velocity joints, allowing for tight maneuverability in narrow underground shafts. The steering joints must be heavily sealed against mud and water intrusion. We inspect the kingpin bearings and steering cylinder mounts regularly for signs of wear or impact damage.
Mounting configurations also vary. Oscillating mounts allow the axle to pivot, keeping all wheels on the ground over rough terrain. Rigid mounts bolt directly to the chassis. The choice impacts frame stress distribution and overall vehicle stability during loading cycles. Oscillating axles require heavy-duty trunnion bearings and thrust washers to handle the continuous pivoting motion. We grease these pivot points daily to prevent premature wear and ensure smooth articulation.
The structural integrity of the steering knuckles is paramount on steerable drive axles. They must withstand massive side loads during cornering while supporting the vehicle's weight. We specify axles with forged steel steering knuckles and oversized kingpin bearings. The constant velocity joints require specialized high-temperature grease and heavy-duty rubber boots to protect them from abrasive dust. A torn CV boot will lead to rapid joint failure in a mining environment.
Extreme payloads in surface mining haul trucks require multi-axle setups. Tandem (two rear axles) and tridem (three rear axles) configurations distribute the massive weight over a larger footprint. This distribution prevents tire blowouts and reduces structural fatigue on the vehicle frame. By spreading the load, these configurations allow vehicles to carry heavier payloads without exceeding the bearing capacity of the haul road.
These setups introduce mechanical complexity. Inter-axle differentials are necessary to allow the different axles to rotate at slightly different speeds during turns. While they increase payload capacity, they also increase the number of moving parts requiring regular maintenance and lubrication. The inter-axle drivelines are short and operate at steep angles, requiring frequent universal joint inspection and replacement. We monitor the temperature of the inter-axle differentials to detect early signs of bearing failure.
Suspension systems for tandem and tridem axles must equalize the load between the axles. Walking beam suspensions or hydraulic equalization cylinders ensure that each axle carries its fair share of the weight. If the suspension fails to equalize the load, one axle will bear the brunt of the payload, leading to rapid structural failure. We inspect the suspension pivot points and equalization mechanisms regularly to ensure proper load distribution.

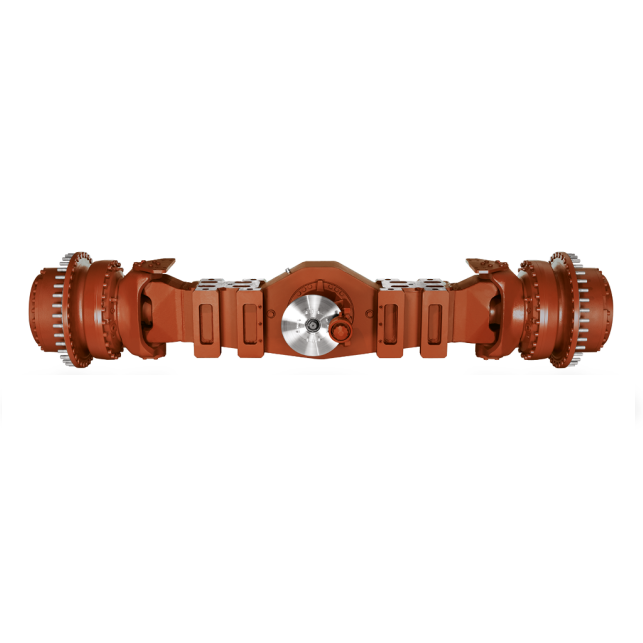

The Kessler D81 Drive Axle features a highly robust planetary rigid design. It delivers exceptional load-bearing capacity tailored for severe-duty cycles. The thick-walled cast housing resists impact damage from loose rocks and debris. This axle is engineered specifically for the harsh realities of heavy industry, utilizing oversized bearings and high-strength alloy steel gears. The internal architecture minimizes deflection under heavy loads, ensuring precise gear mesh and extending component life.
As a premier component among heavy-duty Transmission System Parts, it integrates seamlessly with various heavy equipment platforms. The modular planetary hub construction simplifies ratio adjustments. Technicians can swap planetary gear sets to alter the final drive ratio without replacing the entire axle assembly. This modularity allows fleet managers to standardize on a single axle housing while adapting the gear ratios for different vehicle applications. The input flange options accommodate a wide range of heavy-duty driveshafts.
The differential carrier is a massive casting designed to hold the ring and pinion gears in perfect alignment. It utilizes heavy-duty thrust blocks to prevent ring gear deflection under extreme torque loads. The axle shafts are forged from high-strength alloy steel and feature rolled splines for maximum fatigue resistance. We have disassembled these axles after thousands of hours of operation and found the internal components to be in excellent condition, a testament to the robust engineering.
This specific axle excels in demanding environments. It is the preferred choice for heavy underground loaders navigating tight, steep declines. Heavy forklifts operating in rough-terrain material handling yards also rely on its durability. Specialized mining support vehicles utilize this axle to ensure consistent performance under maximum load. When you need to move a 50-ton block of marble or haul ore up a 15% grade, this axle provides the necessary tractive effort and structural integrity.
Underground mining presents unique challenges, including tight clearances and highly corrosive water. The compact design of this axle allows for low vehicle profiles, essential for navigating narrow drifts. The advanced sealing technology prevents water and abrasive slurry from contaminating the gear oil. We specify this axle for our underground LHD fleet because it consistently delivers high availability and low maintenance costs in these brutal conditions.
Surface mining support equipment, such as heavy-duty tow tractors and massive cable reelers, also benefit from this axle's capabilities. These vehicles require massive low-end torque and the ability to operate continuously at low speeds. The planetary reduction hubs provide the necessary torque multiplication, while the robust housing supports the heavy attachments. We rely on this axle to keep our critical support equipment operational around the clock.
Field data demonstrates the superior durability of this axle architecture. The enclosed wet braking system effectively eliminates contamination-related brake failures. The robust housing design protects internal gears from external impact damage. Operators consistently report extended service intervals and highly predictable wear patterns when utilizing this specific drivetrain component. We track the MTBF of all our drivetrain components, and this axle consistently ranks at the top of the list for reliability.
The wet multi-disc brakes provide smooth, fade-free stopping power, even when hauling heavy loads down steep ramps. The brake cooling system effectively manages the heat generated during continuous braking, preventing fluid degradation. We perform regular oil analysis on the brake cooling circuit and rarely see signs of excessive friction material wear. This translates to lower maintenance costs and increased vehicle uptime.
The structural integrity of the axle housing prevents the bending and cracking issues common with lighter-duty axles. We operate in rocky terrain where impact damage is a constant threat. The thick-walled casting shrugs off impacts that would destroy a standard commercial axle. This durability reduces the need for costly housing repairs and replacements, further lowering the overall operating costs of the vehicle fleet.
Premium drivetrain components require a higher initial capital investment. However, this upfront cost is easily justified through extended lifecycle durability. Cheaper axles fail faster, causing expensive unplanned downtime. Investing in heavy-duty components reduces the frequency of major overhauls and keeps the fleet moving material profitably. We look at the cost per hour of operation rather than the initial purchase price. A more expensive axle that lasts twice as long is the better financial decision.
When you factor in the cost of labor, replacement parts, and lost production, the cheaper axle quickly becomes the most expensive option. We have conducted extensive lifecycle cost analyses that prove the value of investing in premium components. The reduction in unscheduled maintenance events alone justifies the higher initial investment. You must build a business case based on total lifecycle performance, not just the procurement budget.
Furthermore, premium axles often come with better warranty coverage and technical support from the manufacturer. This support is invaluable when troubleshooting complex drivetrain issues or optimizing vehicle performance. We partner with manufacturers who understand the demands of the mining industry and stand behind their products. This partnership ensures we have the resources needed to keep our equipment running efficiently.
Standard splash lubrication relies on gears churning through an oil bath. This is often insufficient for high-load differentials operating at low speeds. Forced-feed lubrication systems use internal pumps to direct oil specifically to critical bearings and gear meshes. This ensures adequate lubrication even when the vehicle is crawling up a steep grade under heavy load. We specify forced-feed lubrication for all our primary production equipment.
Implementing magnetic drain plugs captures microscopic metal shavings before they cause abrasive wear. Inline oil filtration further extends gear and bearing life by maintaining fluid cleanliness in highly contaminated environments. We install high-efficiency bypass filters on our axle cooling circuits to remove particulate matter down to 3 microns. This level of filtration significantly extends the life of the gear oil and the internal components.
Regular oil sampling is a critical component of our preventative maintenance program. We analyze the oil for wear metals, viscosity changes, and contamination. This data allows us to detect impending failures before they occur and schedule maintenance proactively. We change the gear oil based on condition rather than a fixed time interval, optimizing fluid usage and minimizing maintenance costs.
Standardizing fleet axles provides a massive strategic advantage. It streamlines inventory management for critical wear parts like seals, bearings, and friction plates. Mechanics become highly proficient at servicing a single architecture, reducing repair times. We maintain a comprehensive inventory of spare parts for our standardized axles, ensuring we can complete repairs quickly and minimize vehicle downtime.
Evaluating the global supply chain reliability of the axle manufacturer is crucial. You need guaranteed access to replacement parts, regardless of how remote your mining operation is located. We partner with manufacturers who have a strong global distribution network and a proven track record of parts availability. We cannot afford to have a multi-million dollar machine sitting idle waiting for a simple seal kit.
Standardization also simplifies operator training. Operators become familiar with the performance characteristics and braking feel of a specific axle type. This familiarity improves safety and operational efficiency. We work closely with our equipment suppliers to ensure new vehicles are specified with our standardized drivetrain components, maintaining consistency across the fleet.
Rapid field maintenance keeps equipment operational. Look for design features that facilitate quick servicing. Accessible fill and drain plugs speed up fluid changes. Modular planetary hubs allow technicians to inspect and service wheel-end components without dropping the entire heavy axle assembly from the chassis. We prioritize equipment that is designed with the mechanic in mind.
Clear sight glasses for checking fluid levels reduce the time required for daily inspections. Easily accessible grease zerks ensure that pivot points and bearings receive proper lubrication. We modify our equipment to route remote grease lines to hard-to-reach areas, ensuring no lubrication points are missed. These small design details make a significant difference in the overall maintainability of the vehicle.
Comprehensive service manuals and specialized tooling are also essential for efficient maintenance. We ensure our technicians have access to the latest technical documentation and the proper tools to perform repairs safely and correctly. We invest in specialized lifting equipment and axle stands to facilitate safe and efficient axle removals and installations.
Mismatched gear ratios pose a severe risk. If the axle ratio does not align with the transmission output, it causes drivetrain wind-up. This mismatch generates excessive transmission heat and leads to rapid component failure. We have seen transmissions destroyed in a matter of hours due to incorrect axle ratios. The entire kinematic chain must be engineered as a cohesive system.
To mitigate this, mandate comprehensive engineering reviews of the entire kinematic chain before procurement. Ensure the engine, transmission, driveshafts, and axles are perfectly synchronized for the intended operational profile. We require our equipment suppliers to provide detailed rimpull curves and torsional vibration analyses before we approve a new vehicle specification. This rigorous engineering review prevents costly compatibility issues.
We also conduct baseline performance testing on new vehicles to verify powertrain compatibility. We monitor transmission temperatures, driveshaft vibrations, and engine load factors during initial operation. If we detect any anomalies, we investigate and resolve the issue before putting the vehicle into full production. This proactive approach prevents catastrophic failures and ensures long-term reliability.
Aligning heavy drive axles requires precision. Misalignment causes driveshaft vibrations and premature universal joint failure. Calibrating hydraulic brake pressures is also complex and critical for safe operation. The axle must be perfectly square to the chassis to ensure proper tracking and minimize tire wear. We use laser alignment tools to verify axle positioning during installation.
Mitigate these challenges by utilizing OEM-certified installation protocols. Conduct rigorous unladen and laden field testing prior to full deployment. Verify brake performance and monitor differential temperatures during the initial break-in period. We require our technicians to follow detailed checklists during axle installation and calibration. This ensures all critical steps are completed correctly and documented.
Brake calibration involves setting the correct hydraulic pressures for the service brakes and the spring-applied parking brakes. Incorrect pressures can lead to brake dragging, overheating, or inadequate stopping power. We use calibrated pressure gauges to verify the hydraulic settings against the manufacturer's specifications. We also perform dynamic brake testing on a designated test ramp to ensure the vehicle meets all safety requirements.
Feature | Standard Commercial Axle | Heavy-Duty Mining Drive Axle |
|---|---|---|
Braking System | Exposed Dry Disc Brakes | Enclosed Liquid-Cooled Wet Multi-Disc Brakes |
Torque Multiplication | Central Differential Only | Planetary Hub Reduction at Wheel End |
Housing Durability | Standard Stamped or Light Cast Steel | Thick-Walled, High-Impact Cast Iron/Steel |
Environmental Sealing | Basic Dust Seals | Advanced IP-Rated Multi-Lip Sealing |
Lubrication Method | Basic Splash Lubrication | Forced-Feed with Inline Filtration |
Load Capacity | Designed for Paved Highway Use | Engineered for Extreme Dynamic Shock Loads |
Choosing the correct drive axle requires a strict engineering evaluation of load, torque, and environmental factors. Relying on standard commercial specifications in a mining environment guarantees failure. Prioritize planetary reduction, enclosed wet brakes, and proven architectures for severe-duty applications. You must evaluate the entire drivetrain as an integrated system to ensure maximum reliability and performance.
Audit your current fleet's failure rates to identify recurring drivetrain weaknesses.
Consult with a drivetrain engineering specialist to calculate precise dynamic load requirements.
Request detailed technical drawings and load charts for all shortlisted transmission system parts.
Standardize your procurement strategy around proven, modular axle architectures to simplify maintenance.
Implement a rigorous oil sampling program to monitor the health of your heavy-duty axles.
A: Mining axles feature planetary hub reduction to multiply torque at the wheel. They use exceptionally thick cast housings to withstand rock impacts. Additionally, they utilize fully enclosed wet multi-disc brakes to prevent failure from abrasive mud and dust.
A: Engineers calculate dynamic load by taking the gross vehicle weight and applying operational shock factors. They factor in weight distribution shifts during heavy braking, acceleration, and navigating steep, uneven gradients.
A: Wet multi-disc brakes are fully sealed inside the axle housing. This protects them entirely from abrasive dust and corrosive mud. They also offer superior cooling capabilities under heavy, continuous braking on steep declines.
A: External cooling loops actively pump brake cooling oil through a heat exchanger. This auxiliary cooling prevents oil degradation and eliminates dangerous brake fade during continuous downhill haulage with heavy payloads.
A: The Kessler D81 Drive Axle is typically utilized in heavy underground mining loaders, heavy-duty reach stackers, rough-terrain forklifts, and specialized high-capacity haulers.
A: Premature failure is often caused by mismatched tire sizes forcing the differential to work continuously. Incorrect oil viscosity, lack of fluid maintenance, and excessive wheel slip in high-traction environments also destroy internal gears rapidly.
