How Do Kessler Drive Axles Support Underground Loaders?

Drivetrain failure in underground mining carries a massive penalty. A single axle breakdown halts extraction operations, incurs heavy recovery expenses, and delays production schedules. Underground Loaders, commonly known as Load Haul Dump (LHD) vehicles, operate under extreme dynamic loads. They face constant debris exposure and navigate severe spatial constraints. These harsh conditions cause rapid degradation of standard drivetrain components. Selecting heavy-duty drive axles acts as a critical risk-mitigation strategy. Kessler planetary designs provide the necessary durability for these environments. Evaluating the right Transmission System Parts directly correlates to increased operational uptime and lower overall maintenance frequency over the equipment's lifespan. Planetary mechanics, specific axle architectures, and rigorous maintenance protocols keep mining fleets moving safely and efficiently.

• Extreme Payload Management: Kessler planetary drive axles are engineered to handle payloads ranging from 8t to 200t, specifically supporting the >50,000kg capacities required by modern heavy underground loaders and mining trucks.

• Mechanical Stress Distribution: Planetary gear configurations at the wheel hub multiply torque locally, significantly reducing rotational stress on upstream transmission system parts.

• Predictable Maintenance: Standardized architectures across the Kessler D-Series allow for controlled servicing, utilizing specific torque kits to maintain brake-pack integrity and ensure safety in underground environments.

• Lifecycle Value: The upfront premium of specifying Kessler axles is offset by extended Mean Time Between Failures (MTBF) and reduced catastrophic drivetrain failures.

The Operational Demands on Underground Loader Drivetrains

Underground mining environments push mechanical equipment to absolute breaking points. Defining the baseline requirements for LHD drivetrains requires understanding the unique physical forces at play. These machines demand continuous high-torque output at low speeds to penetrate dense muck piles. When an operator drives the bucket into a pile of blasted rock, the drivetrain must deliver massive tractive effort without slipping or stalling. Bidirectional operation is constant. Operators shift from forward to reverse hundreds of times per shift, often while the machine is still rolling slightly. This creates immense torsional stress on the driveline. Resistance to shock loading is mandatory. When a loader bucket strikes a solid rock face or a hidden boulder, the impact energy travels directly through the tires into the axle housing and differential. Standard axles simply shatter under these sudden load spikes.

Environmental stressors further complicate equipment longevity. Underground mines present a hostile atmosphere for exposed metal and rubber components. Acidic mine water pools in drifts, accelerating corrosion on axle housings and exposed linkages. Abrasive rock dust acts like a grinding compound on exposed rotating surfaces. This dust constantly attacks wheel seals, bearing interfaces, and exposed brake calipers. If a seal fails, the abrasive slurry enters the planetary hub, destroying the gears in a matter of hours. Uneven, rocky terrain forces the suspension and axles to articulate violently, testing the structural limits of the entire chassis. The constant vibration and twisting forces require axle housings that can flex slightly without permanently deforming or cracking.

Spatial constraints dictate the physical design of mining machinery. Mine shafts and production drifts offer very little clearance. Equipment must remain compact to navigate these tight spaces. Axle profiles cannot compromise the loader's ground clearance. Low-hanging differentials risk catastrophic damage from uneven floors, rocks, and debris. A ruptured differential housing drains the gear oil, leading to immediate internal failure. Furthermore, the turning radius in narrow mine shafts must remain exceptionally tight. Axles must deliver maximum steering angles without binding or sacrificing torque delivery to the wheels. This requires sophisticated steering joint designs that can handle high torque loads at extreme angles.

Evaluating Kessler Drive Axles as Core Transmission System Parts

Planetary gear reduction mechanics form the foundation of heavy-duty axle performance. Kessler's planetary hubs function by distributing loads across multiple gear teeth simultaneously. A central sun gear, driven by the axle shaft, drives multiple planet gears. These planet gears walk along a stationary outer ring gear, rotating the planetary carrier attached to the wheel hub. This configuration multiplies torque directly at the wheel hub, rather than at the central differential. Finalizing gear reduction at the wheel end provides a massive engineering advantage. It protects central Transmission System Parts from destructive torque spikes. Because the multiplication happens at the very end of the driveline, the differential, driveshafts, and transmission experience significantly lower rotational stress. They spin faster but carry less torque, reducing the likelihood of catastrophic failure upstream.

Articulated LHD designs require specific axle configurations to function correctly. Comparing rigid drive axles and steer-drive axles reveals distinct operational differences. Rigid axles typically mount to the rear frame, providing brute pushing force and carrying the bulk of the engine weight. Steer-drive axles mount to the front, guiding the machine into the cut and carrying the payload weight. Kessler's steering axle joints utilize robust double cardan or constant velocity designs. These joints maintain high torque transmission and angular velocity stability during tight-radius underground maneuvers. They prevent the driveline binding and wheel hop that plague lesser axle designs in articulated applications. Smooth power delivery during a tight turn is essential for maintaining traction and preventing tire wear.

The Kessler D-Series architecture offers a comprehensive solution for mining fleets. The modular D-Series lineup includes the D41, D71, D81, D91, D101, D102, D106, D111, and D121. This extensive range covers virtually every size of underground loader, from small utility vehicles to massive production loaders. Modularity allows OEMs and fleet managers to scale axle capacity to specific LHD frame sizes. You can upgrade a machine's payload capacity without redesigning the entire powertrain. Standardized mounting points and input flanges across the series simplify engineering and integration. This modularity also benefits maintenance crews, as the internal architecture and repair procedures remain consistent across different axle sizes, reducing the learning curve and improving repair efficiency.

Deep Dive: The Kessler D102 Planetary Drive Axle

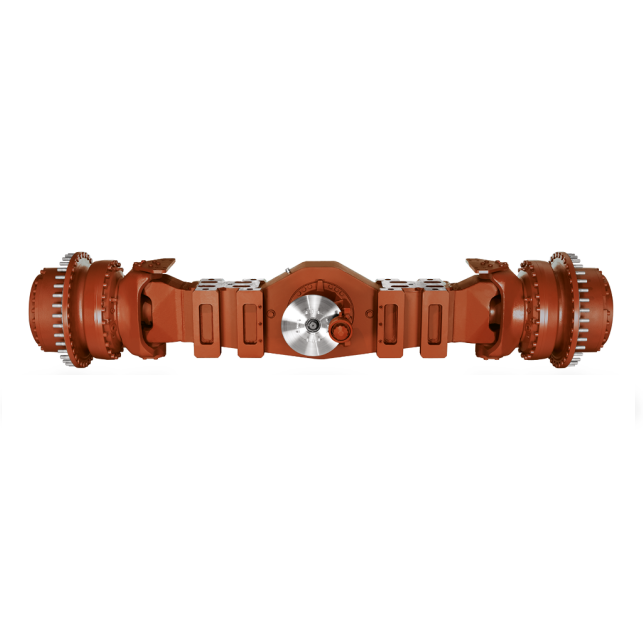

High-capacity applications require specialized hardware. Evaluating the Kessler D102 Planetary Drive Axle reveals dynamic and static load-handling capabilities engineered for machines exceeding 50,000kg. The housing rigidity is paramount. Kessler utilizes high-strength nodular iron castings and thick-walled steel tubing. This material composition prevents housing deflection under maximum bucket breakout force. If an axle housing bends, internal gears misalign, leading to rapid and catastrophic failure. The D102 maintains strict internal tolerances regardless of external physical strain. The massive wheel bearings are spaced widely apart to handle the extreme side loads generated when a fully loaded LHD corners on uneven ground.

Braking safely in an underground mine is a matter of life and death. The D102 features fully enclosed, liquid-cooled wet multi-disc brakes. These brakes sit inboard, protected within the axle housing. Enclosed braking protects friction materials against abrasive mine environments. Mud, water, and rock dust cannot reach the brake discs, ensuring consistent friction coefficients. Liquid cooling dissipates heat rapidly through a forced circulation system. The cooling oil absorbs the heat generated during braking and carries it away to an external heat exchanger. This design eliminates brake fade during steep, fully loaded declines, ensuring the operator always maintains control of the vehicle. The multi-disc design also provides a massive friction surface area, delivering immense stopping power without requiring excessive hydraulic pressure.

Mounting configurations dictate how the axle interacts with the LHD frame. The D102 offers both trunnion and cradle mounts. Trunnion mounts utilize a central pivot pin, allowing the entire axle to oscillate independently of the frame. Cradle mounts support the axle in a sub-frame that pivots. These specific mounting styles accommodate frame oscillation over rough terrain. They reduce structural stress on the vehicle frame and maintain tire traction on uneven underground surfaces. Keeping all four tires planted is essential for maximum tractive effort. If one tire lifts off the ground, the differential sends power to the spinning wheel, halting forward progress. Proper axle oscillation ensures continuous ground contact and consistent power delivery.

Features-to-Outcomes: Evaluation Dimensions for Mining Fleets

Reliability under extreme payloads directly impacts mine profitability. Kessler's heavy-duty casting and bearing selection map directly to reduced unplanned downtime. Oversized tapered roller bearings handle massive side loads during cornering. Precision-cut helical gears operate quietly and resist pitting under heavy continuous loads. These engineering choices extend lifecycle hours significantly compared to standard off-highway axles. When an axle survives the entire lifecycle of the loader without requiring a major overhaul, the mine avoids hundreds of hours of lost production and expensive labor costs.

Brake-pack torqueing requires strict adherence to maintenance protocols. Controlled maintenance procedures for D-Series axles are not optional. The availability of specialized underground torque tools ensures precise, calibrated brake-pack rebuilding. Mechanics must compress the multi-disc brake packs to exact factory specifications. The critical safety impact of correct torqueing cannot be overstated. It prevents brake drag, which causes overheating and potential underground fire hazards. Proper assembly guarantees the brakes will hold a fully loaded machine on a mine ramp. If the brake pack is too loose, the machine will roll. If it is too tight, the friction discs will burn up within hours.

Versatility across off-highway applications simplifies fleet management. Standardizing on Kessler components across mixed fleets provides massive logistical advantages. Loaders, dump trucks, rough-terrain cranes, and material handlers can often share internal components. This streamlines inventory and parts commonality for critical Transmission System Parts. Stocking fewer unique part numbers reduces warehouse overhead and ensures mechanics are intimately familiar with the repair procedures for the entire fleet. When a mechanic knows exactly how to rebuild a Kessler planetary hub, they can apply that knowledge to multiple machines, reducing repair times and minimizing errors.

Overall Value Influencing Factors and Conceptual Trade-Offs

Equipment procurement requires balancing initial costs against long-term performance. A realistic look at the capital expenditure required for Kessler axles reveals a higher upfront investment. However, you must weigh this against the operational impact of replacing cheaper, under-specced axles multiple times over a loader's lifecycle. An axle failure underground requires specialized recovery equipment, lost production time, and expensive emergency labor. Dragging a broken loader out of a production drift can take days. Investing in structural integrity upfront prevents these cascading operational losses and keeps the extraction process moving smoothly.

Sourcing replacement components introduces significant risk. The debate between OEM and aftermarket parts is critical here. Integrating non-genuine gears or bearings into a Kessler planetary hub invites disaster. Aftermarket parts often lack the specific metallurgical treatments required for mining applications. They might look identical, but they lack the surface hardening necessary to survive shock loads. Slight deviations in machining tolerances can lead to uneven load distribution across the planet gears. This imbalance inevitably leads to catastrophic planetary gear failure under heavy loads, destroying the entire hub assembly and contaminating the axle housing with metal shrapnel.

Physical weight presents a conceptual trade-off. Kessler axles are exceptionally heavy. Acknowledging this heavy physical weight is necessary. It is a mandatory trade-off for the structural integrity required in mining applications. While lighter axles might improve fuel efficiency marginally, they simply cannot survive the breakout forces and shock loads generated by a 50-ton loader hitting a rock face. The thick castings and massive internal components add significant mass to the vehicle. In underground mining, durability always supersedes weight savings. A broken machine burns no fuel, but it also moves no ore.

Implementation Risks and Mitigation Strategies

Upgrading or specifying new axles involves engineering challenges. Proper planning mitigates integration and maintenance risks. You must evaluate the entire driveline to ensure compatibility and prevent transferring the weak link to another component.

Conclusion

Kessler drive axles, particularly the heavy-duty D-Series, are structurally necessary for underground loaders operating in the >50t payload category. They offer unmatched torque management and environmental protection. Fleet managers and engineers should specify the Kessler D102 Planetary Drive Axle when upgrading LHDs that suffer from chronic differential or hub failures under high breakout forces. To improve your fleet's reliability, execute the following steps.

1. Audit current loader drivetrain failure rates to identify weak points in your existing fleet architecture.

2. Consult with a drivetrain engineering specialist to verify gear ratio compatibility before ordering replacement axles.

3. Request technical drawings for D-Series integration to ensure proper fitment with your specific LHD frame and suspension mounts.

4. Procure the necessary specialized torque kits required for safe underground brake maintenance and planetary hub rebuilding.

FAQ

Q: What is the payload capacity range of Kessler drive axles?

A: Kessler designs and manufactures planetary drive axles capable of handling payloads ranging from 8 metric tons up to 200 metric tons. This broad range makes them suitable for everything from small utility material handlers to massive underground mining trucks operating in severe conditions.

Q: How does the Kessler D102 Planetary Drive Axle differ from standard off-highway axles?

A: The D102 features exceptionally thick-walled nodular iron housings to prevent deflection under heavy loads. It includes fully enclosed liquid-cooled wet multi-disc brakes to eliminate fade and heavy-duty planetary hubs designed specifically to absorb the severe shock loads of underground mining.

Q: Why are planetary drive axles preferred for underground mining loaders?

A: Planetary axles finalize the gear reduction at the wheel hub rather than at the central differential. This multiplies torque directly at the wheel, significantly reducing the rotational stress, twisting forces, and shock loads on the central driveshafts and transmission components.

Q: What specific maintenance is required for Kessler wet multi-disc brakes?

A: Maintenance requires monitoring cooling fluid degradation, replacing worn friction discs at specified intervals, and utilizing specialized torque kits. Mechanics must compress and calibrate the brake packs to exact factory specifications to prevent drag, overheating, and potential fire hazards.

Q: How do trunnion and cradle mounts benefit underground material handlers and loaders?

A: Trunnion and cradle mounts allow the axle to oscillate independently of the vehicle frame. This articulation keeps all four tires in contact with uneven mine floors, maximizing traction, preventing wheel slip, and reducing twisting stress on the machine's main chassis.

Q: Are Kessler transmission system parts compatible with all off-highway vehicle brands?

A: While Kessler axles are highly modular, they require specific gear ratio matching and mounting flange compatibility. They are widely used by major OEMs, but retrofitting requires careful engineering analysis to ensure the transmission and torque converter align with the axle's input requirements.
