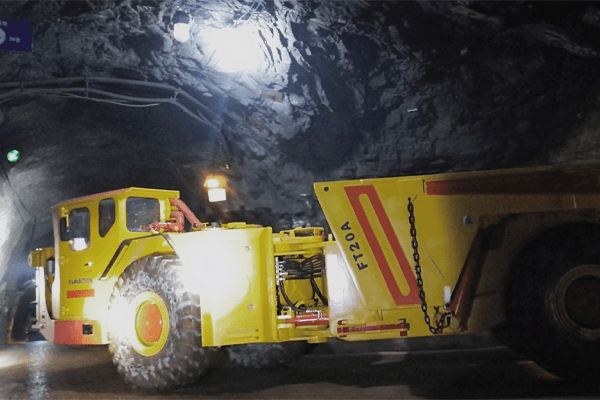

Underground mining trucks are the workhorses of the mining industry, tasked with hauling ore and waste through narrow tunnels, steep grades, and harsh, dusty environments. At the heart of these vehicles lies the transmission system, responsible for converting engine power into the controlled torque and speed needed to navigate challenging terrain while carrying heavy loads. Among the most trusted names in heavy duty transmissions is DANA Incorporated, whose transmissions power a wide range of underground mining trucks thanks to their robust design and advanced features.
Underground mining trucks operate in extreme conditions: high ambient temperatures, heavy dust and debris, steep inclines, and the need for continuous operation under heavy loads. DANA transmissions are engineered with hardened gear materials, precision heat treatments, and robust housings that withstand these harsh environments.
Hardened steel gears resist wear and maintain precise meshing under high torque.
Chromed shafts and splines offer superior resistance to abrasion from contaminated lubricants.
Sealed bearing arrangements prevent ingress of dust and moisture, reducing the risk of premature bearing failure.
These design choices allow DANA transmissions to deliver reliable performance in dusty tunnels and hot engine bays, where lesser designs might suffer accelerated wear or catastrophic failure.
Efficient power transfer is crucial in mining operations, where every percentage point of driveline efficiency translates into fuel savings and increased productivity. DANA’s transmission designs focus on reducing parasitic losses and optimizing gearset ratios for underground haul cycles:
Optimized gear ratios minimize the number of shifts required during a haul cycle, improving cycle times and reducing wear on components.
Low-friction bearings and gear tooth profiles reduce mechanical losses, ensuring more of the engine’s power reaches the wheels.
Integrated torque converters in automatic transmissions provide smooth torque multiplication, aiding in climbing steep grades without excessive slippage and energy waste.
By combining high gearset efficiency with tailored ratio spacing, DANA transmissions help mining trucks move heavier loads faster while consuming less fuel.
Modern underground mining trucks benefit from intelligent transmission control modules that adapt shifting patterns to load, grade, and operator behavior. DANA’s electronic control units (ECUs) incorporate advanced algorithms to:
Automatically adapt shift points based on sensed engine load and terrain angle, optimizing power delivery and fuel efficiency.
Provide neutral lock up control to eliminate converter slip at steady speeds, improving efficiency.
Offer automated retarder integration, coordinating engine braking or hydraulic retarding with gear shifts to maintain safe speed on downhill grades.
This level of automation reduces operator fatigue and ensures that even less-experienced drivers can achieve near optimal performance, extending component life and reducing damage from improper shifting.
Ensuring the longevity and reliability of a DANA transmission in an underground mining truck requires a proactive maintenance regimen. Below are the key maintenance tasks and best practices:
Transmission fluid is the lifeblood of the transmission, providing lubrication, cooling, and hydraulic actuation. Contaminated or degraded fluid can accelerate wear and impair shifting.
Daily Checks: Inspect fluid level and condition via the transmission dipstick or sight glass. Fluid should be clear or light amber; dark, milky, or burnt smelling fluid indicates contamination or overheating.
Scheduled Changes: Follow the manufacturer’s recommended fluid change intervals—typically every 500 to 1,000 operating hours under normal conditions, and more frequently in high dust or high heat applications.
Fluid Specification: Always use the correct OEM approved fluid grade (e.g., DANA SPX series fluids), which contains the proper friction modifiers and additives for DANA gearsets and wet clutches.
Excessive fluid temperature is a leading cause of transmission failure. Mining trucks often operate in confined spaces with limited airflow, so maintaining the transmission cooler is vital.
Cooler Inspection: Regularly inspect the transmission cooler (radiator style or auxiliary plate cooler) for dust and debris buildup. Clean or flush coolers to ensure unobstructed airflow and heat transfer.
Coolant Quality: If the transmission uses a shared radiator circuit, maintain the engine coolant system per schedule to prevent overheating of transmission fluid.
Temperature Monitoring: Utilize onboard telematics or aftermarket sensors to monitor fluid temperature. Set alarms or limits to warn operators when fluid temperature exceeds safe thresholds (typically 80–95°C for many DANA units).
Leaking seals can lead to fluid loss, contamination ingress, and environmental hazards.
Visual Inspection: During daily walk arounds, inspect the transmission housing and cooler lines for oil leaks.
Torque Specs: Ensure that access plug, pan, and line fitting bolts adhere to OEM torque specifications to prevent distortion of flanges and gaskets.
Seal Replacement: Replace seals, o rings, and gaskets at major service intervals or immediately if leakage is detected.
Early diagnosis of shifting problems and atypical noises can prevent costly failures.
Delayed or Harsh Shifts: May indicate worn clutch packs, low fluid level, or improper fluid specification. Conduct a pressure test and inspect clutch pack condition if shifting irregularities persist.
Grinding or Whine: Gear whine or grinding often points to gearset damage or improper bearing preload. Perform a noise isolation test—running the transmission at speed with the drive shafts disconnected can help pinpoint internal gear noise.
Diagnostic Codes: Use DANA’s service software to read ECU fault codes, which can reveal sensor issues, solenoid failures, or clutch temperature faults.
At Silver Ridge Mining’s underground gold operation, the fleet of 30-ton haul trucks suffered frequent transmission failures due to extreme heat and heavy loads. By retrofitting these trucks with DANA TORQ FLOW® automatic transmissions and implementing the maintenance best practices above, the mine achieved:
50% reduction in transmission failures, dropping from 12 per year to 6 per year.
12% improvement in fuel efficiency, thanks to optimized shift schedules and reduced converter slip.
25% increase in mean time between services (MTBS), lowering maintenance costs and unplanned downtime.
Operators reported smoother shifting on steep declines, and maintenance teams appreciated the predictive fault code alerts, which allowed them to address issues before catastrophic failures occurred.
The transmission is the most critical component in an underground mining truck’s drivetrain, responsible for delivering power under some of the harshest operating conditions on earth. DANA transmissions stand out for their durability, efficiency, and intelligent controls, making them ideal for underground mining applications. However, even the toughest transmission can fail prematurely without proper care.
By adhering to a rigorous maintenance schedule—regular fluid checks and changes, cooling system upkeep, seal inspections, and prompt diagnosis of shifting issues—mine operators can maximize the lifespan of their DANA transmissions, improve fuel economy, and reduce costly downtime. As demonstrated in the Silver Ridge mine case study, investing in both high quality components and thorough maintenance protocols pays dividends in operational efficiency and total cost of ownership.
For mining operations seeking to enhance their fleet performance, partnering with Hambition Drivetrain Components & Parts Co., Ltd. for genuine DANA parts, expert service, and tailored maintenance programs is a proven path to sustained productivity underground.
